I.S. & Post Mount Disc Adapters
IS or Post Mount, we’ve got you covered for rotor sizes 140 through 203mm. Mount screws with thread lock already applied come with all adapters. Machined to perfect tolerances here in Chico, California. Instructions about determining size below.
Price range: $39.00 through $50.00
Technical Information
-
MaterialAluminum and Heat Treated Steel
-

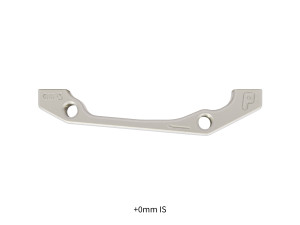

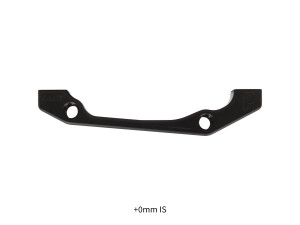

Weight+0mm IS: 15g

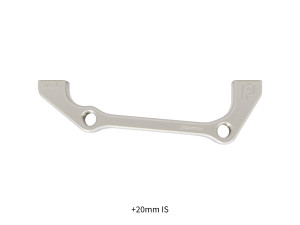

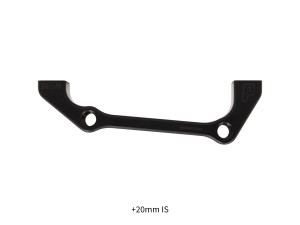

+20mm IS: 16g

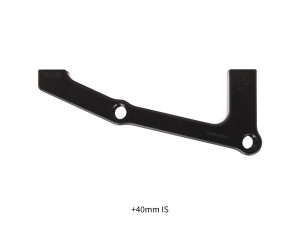

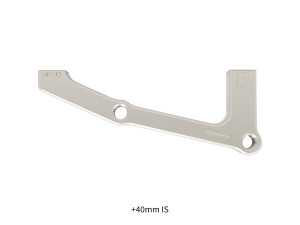

+40mm IS: 26g

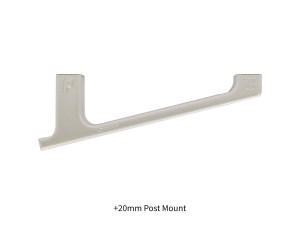

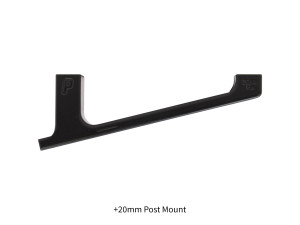

+20mm Post Mount: 21g

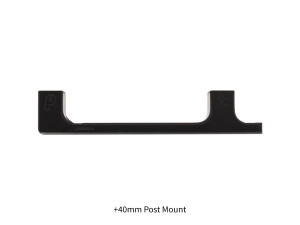

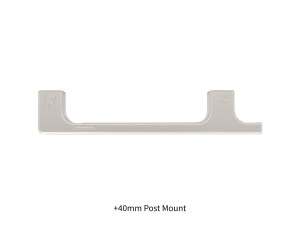

+40mm Post Mount: 21g -
FinishAnodized
-
ColorBlack or Silver
-
MountIS or Post Mount
-
Torque SpecTypically 6-8nm but double check brake and frame/fork manufacturer.
Product Story
IS mounts are the type with the mounting screws that install horizontally. We make them in +0, +20 and +40. To figure out what size adapter you need, you’ll have to check and see what size rotor your frame and/or fork were designed for. For example: if your fork was designed to fit a 160mm rotor and you want to run a 180mm rotor, that is a difference of 20mm, and that’s the adapter you would need. Another example would be a frame that was designed to fit a 140mm rotor, where you want to run a 160mm rotor: you would also need a 20mm adapter.
Please don’t call us asking what size adapter you need, we just don’t know what rotor diameter every frame and fork out there were designed for, so you’ll have better luck asking the frame manufacturer themselves, or your local friendly bike shop.
The post mount version works the same as IS, except the caliper mounts to frame or fork directly through the caliper holes, instead of at a 90^ angle.
For Flat Mount Disc Brake Adapters, click HERE.
