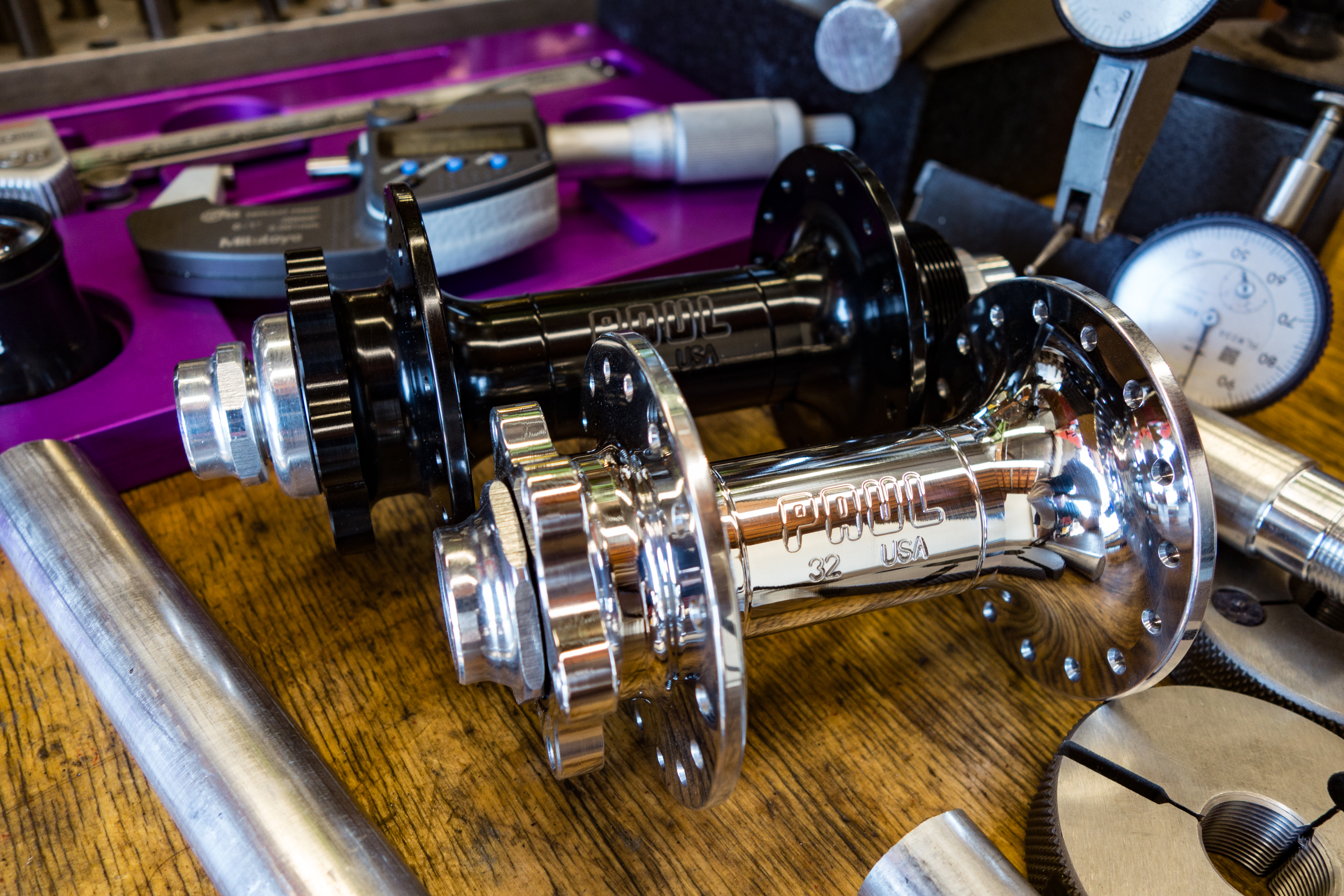

15mm Boost Disk Fhub (110mm)

Our Boost Disc FHUB features a super-stiff, super-light, flex-free 110mm Thru-Axle. Easily serviced and made right here in Chico, California, these hubs will last you a lifetime.

Clear

Technical Information

  • Material
    6061
  • Weight
    180g
  • Finish
    Anodized or Polished
  • Dimensions
    Axle Spacing: 110mm
    Flange Diameter: 56m
    Center to Disk Flange: 26.5mm
    Center to Non-Disk Flange: 38.0mm
  • Spoke Holes
    32 or 28
  • Spoke Hole Diameter
    2.5mm
  • Additional Information
    Download
  • Exploded Assembly Drawing
    111

Product Story

Yes, this hub spins very smoothly due to extremely high tolerance machined bearing bores (.0002″, that’s 8 times thinner than the thickness of a human hair!) and high quality user-adjustable sealed cartridge bearings. The hub shell design has been refined over years of production and real world abuse to be as light as possible while still withstanding the abuse that the biggest, most reckless riders can put it through.

But the real star of the show might be the super-stiff, super-light, flex-free, 7075 Alloy thru-axle. It passes from dropout to dropout (unlike the flexy, non-adjustable caps so common on cheaper hubs that love to pop off and roll under your car or workbench every time you take your wheel off).

Fresh bearings are available for hub overhauls and rebuilds in the Hub Service Parts section. Please note, the axle kits from our other non-boost disc FHUBS are not compatible with this boost hub.

Made with pride in Chico, California.
