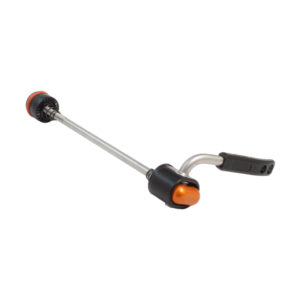

  • 5mm Quick Release Skewers

    $81.00 – $182.00     Select options

  • High Flange Rear

    $194.50 – $200.50     Select options

High Flange Front

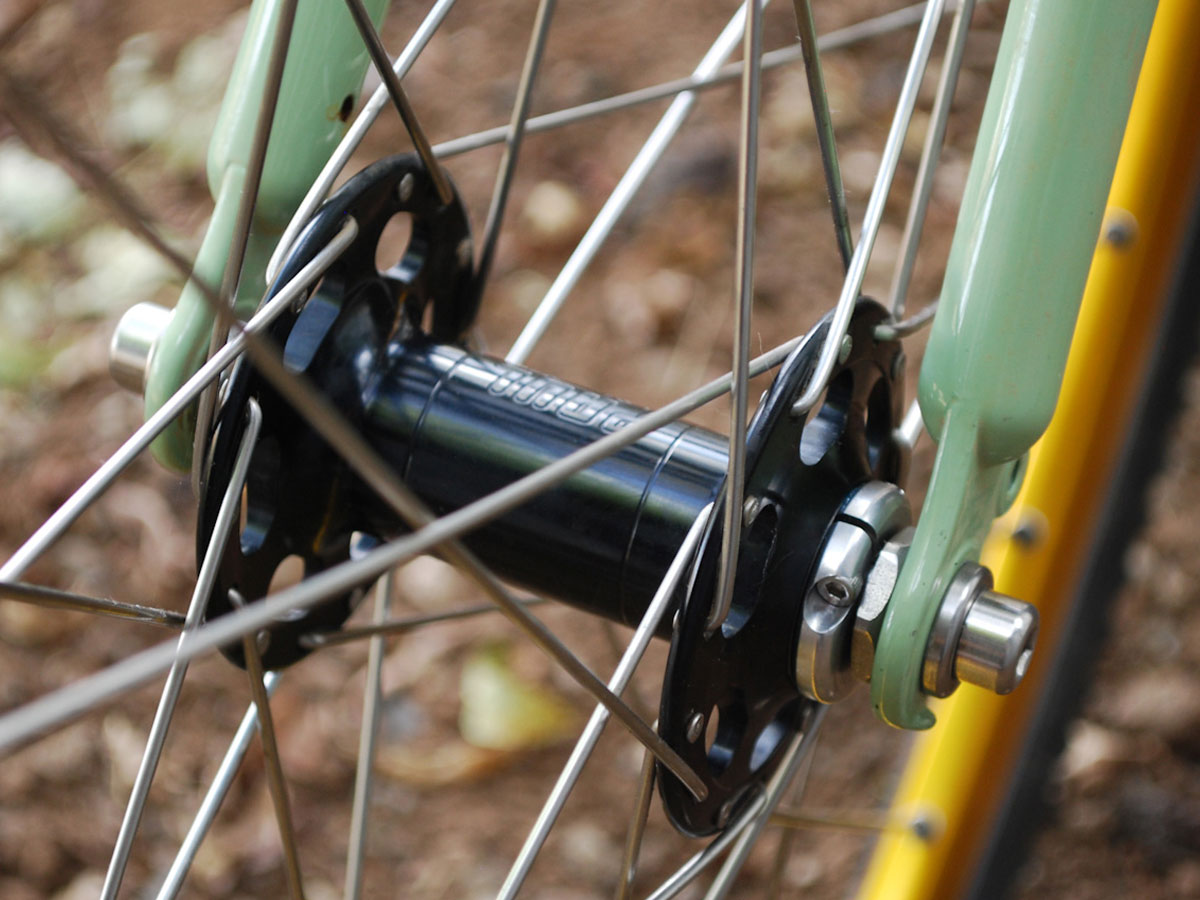

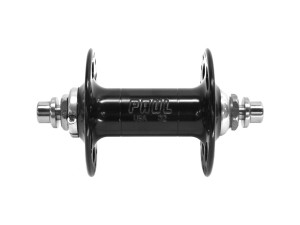

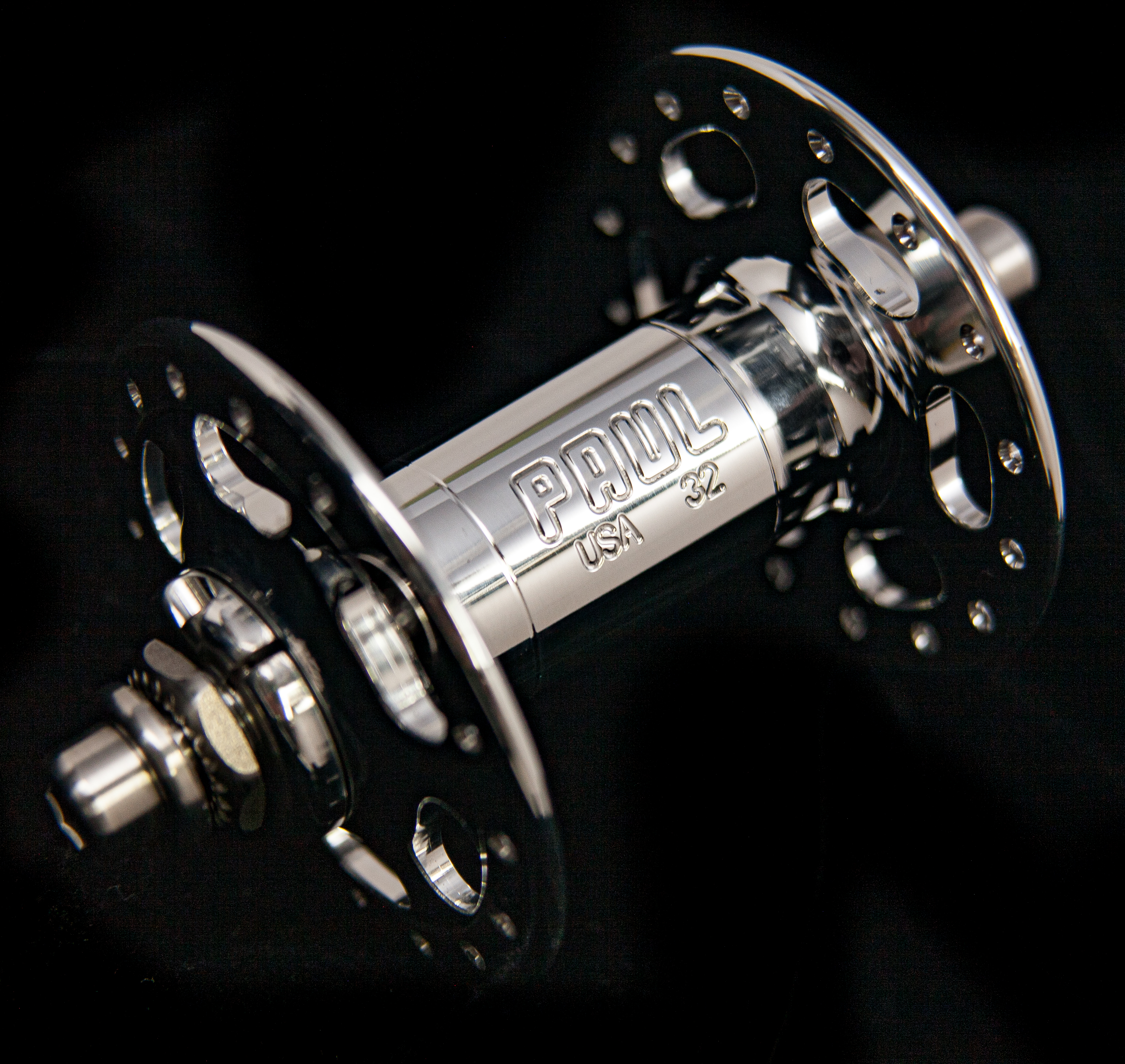

The High Flange Front is a front hub with large diameter flanges that perfectly matches our High Flange Rear track hub.

Clear

Technical Information

  • Material
    6061 Aluminum
  • Weight
    Quick Release Version: 128gr
    Bolt-On Version (Including Bolts): 217gr
  • Finish
    Anodized

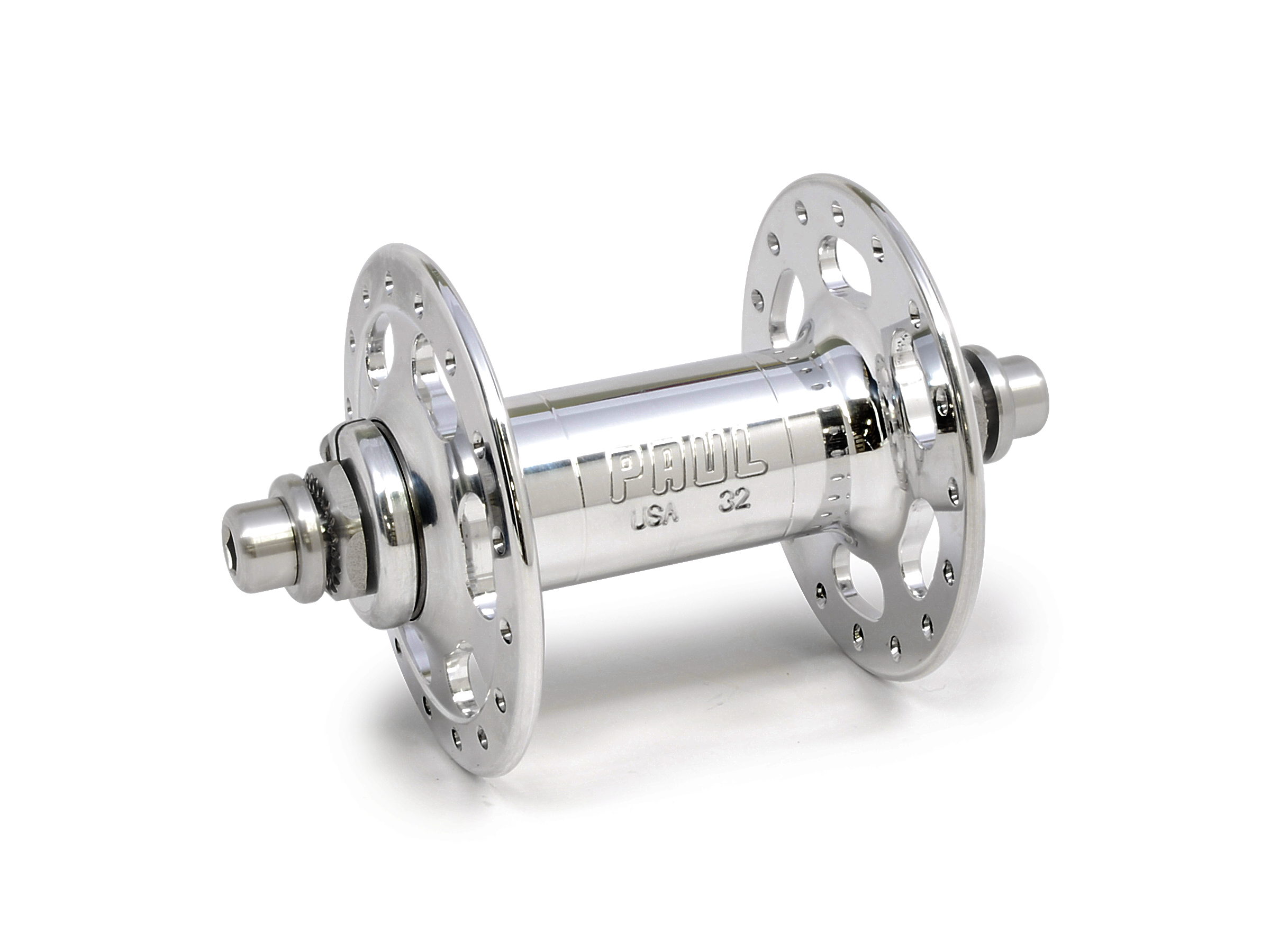

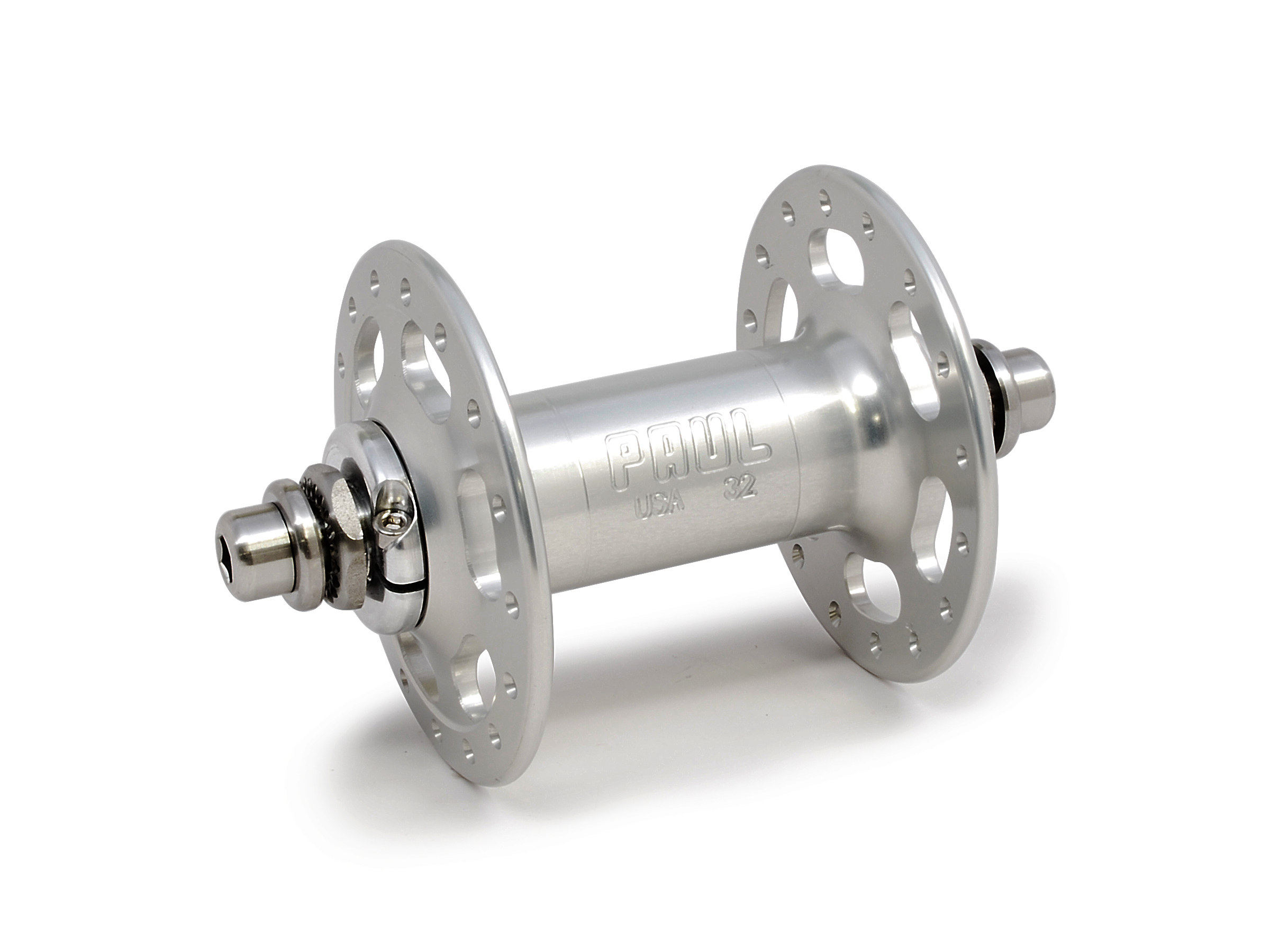

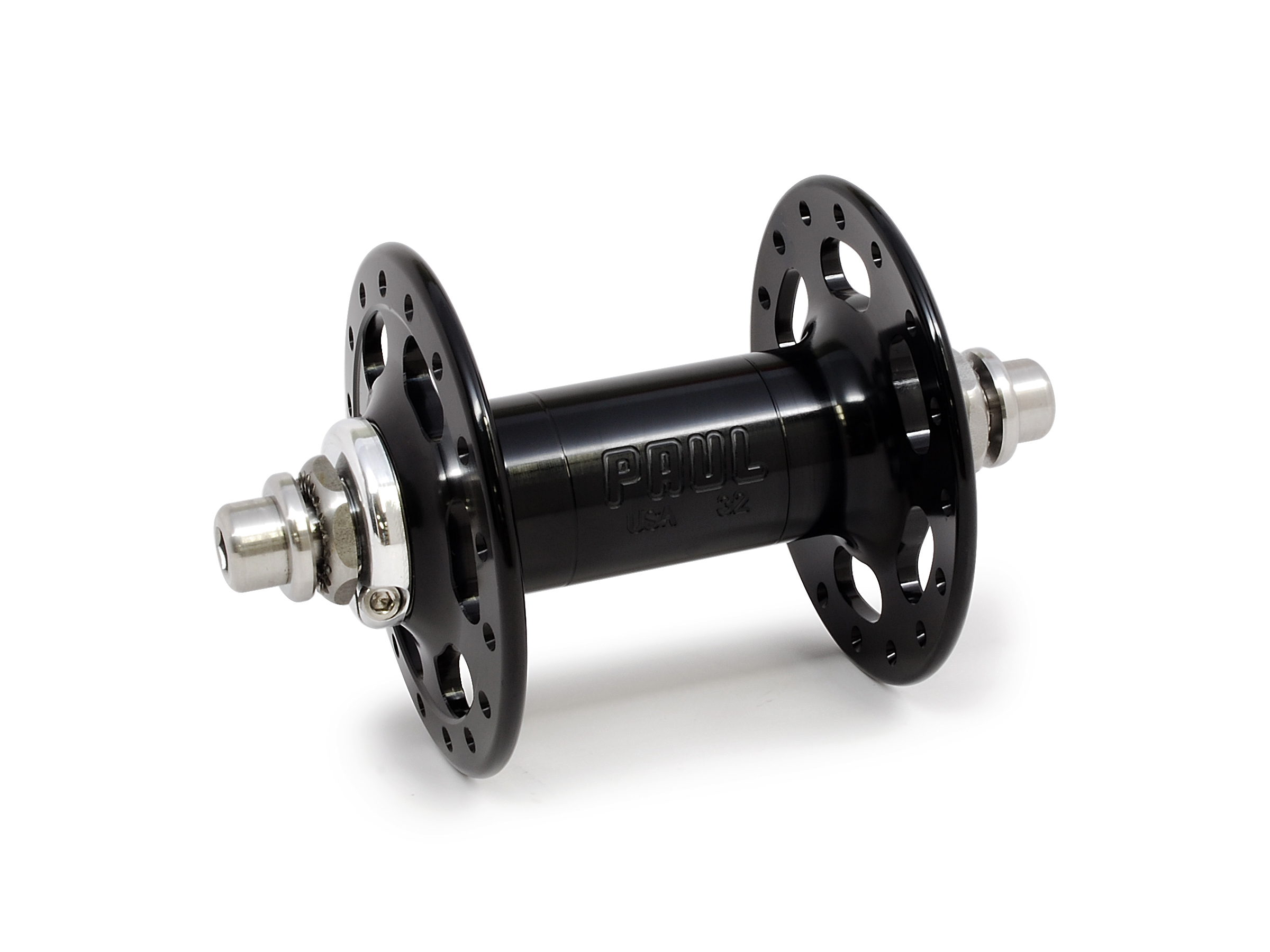

  • Anodized Color
    Black or Silver
  • Dimensions
    Axle Spacing: 100mm
    Flange Diameter: 65m
    Center to Flange: 32.5mm
  • Spoke Holes
    20, 24, 28, 32 ,or 36
  • Spoke Hole Diameter
    2.5mm
  • Additional Information
    Download
  • Exploded Assembly Drawing
    Exploded Assembly Drawing
  • Axle Bolt Torque
    21 N·m

Product Story

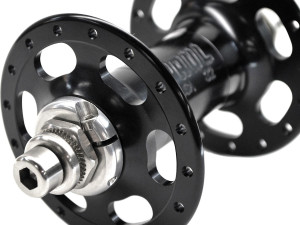

We machine these hubs from three inch round bars of 6061 aluminum. The hub shells are put through four different machining processes before they go to finishing. The end result is something we’re very proud of. The wide flanges have six window cutouts in them to save weight and draw on the influence of classic track hubs.

The axle is ground from 7075 aluminum, which has a great strength to weight ratio. The outer lock nut faces are made of knurled steel for a solid grip against dropouts. Two different axles are available, for a bolt-on or quick-release attachment. Service Parts are available to convert between axle types.

High Flange Front comes with Enduro sealed bearings, and they can be adjusted with our simple adjuster ring.

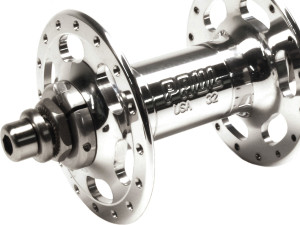

Spoke hole counts are available in 20, 24, 28, 32, and 36, and the spoke holes are chamfered to reduce stress on the head and elbow of the spoke.
