Fixed Boost Disk Word (148mm)

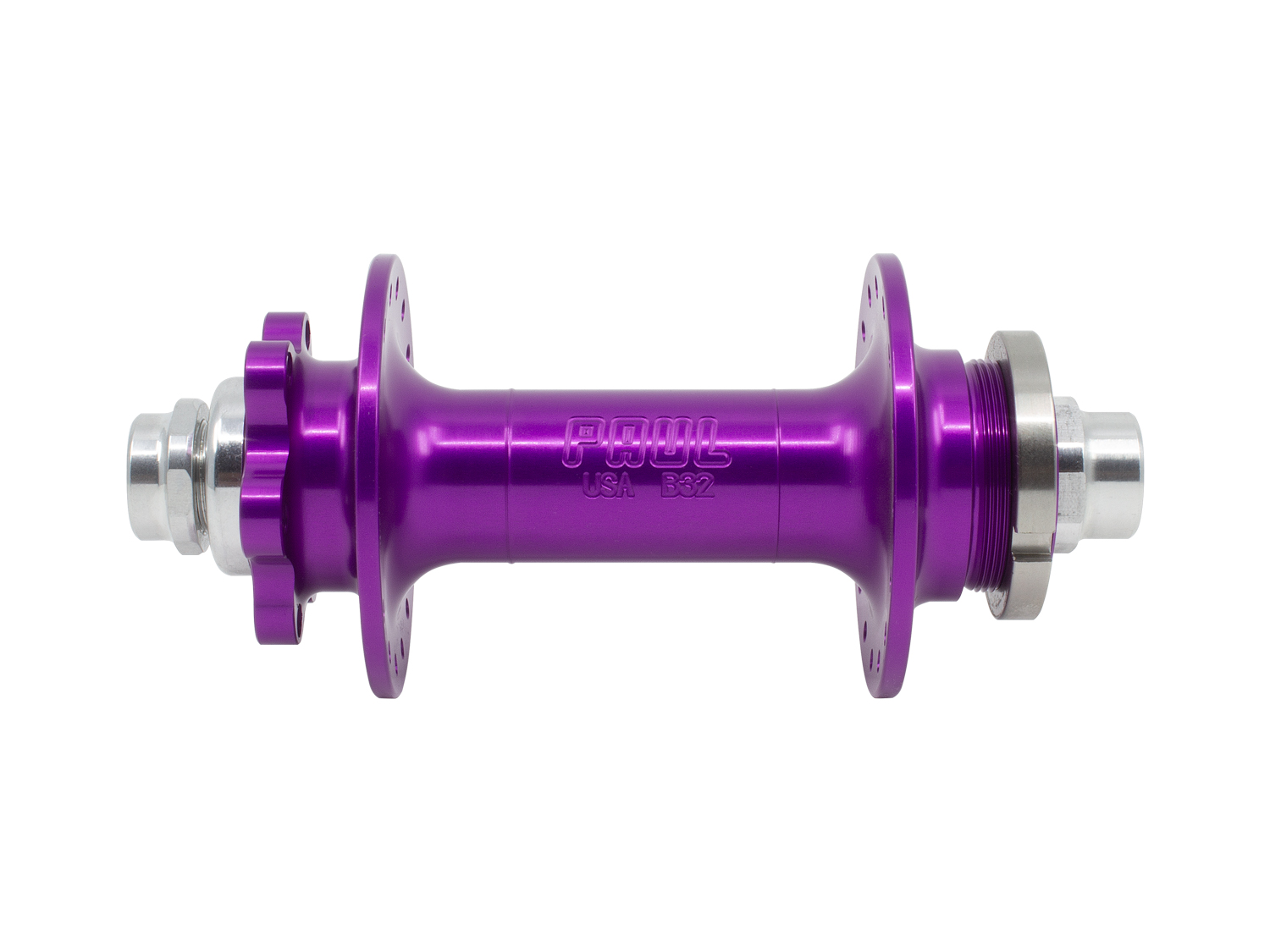

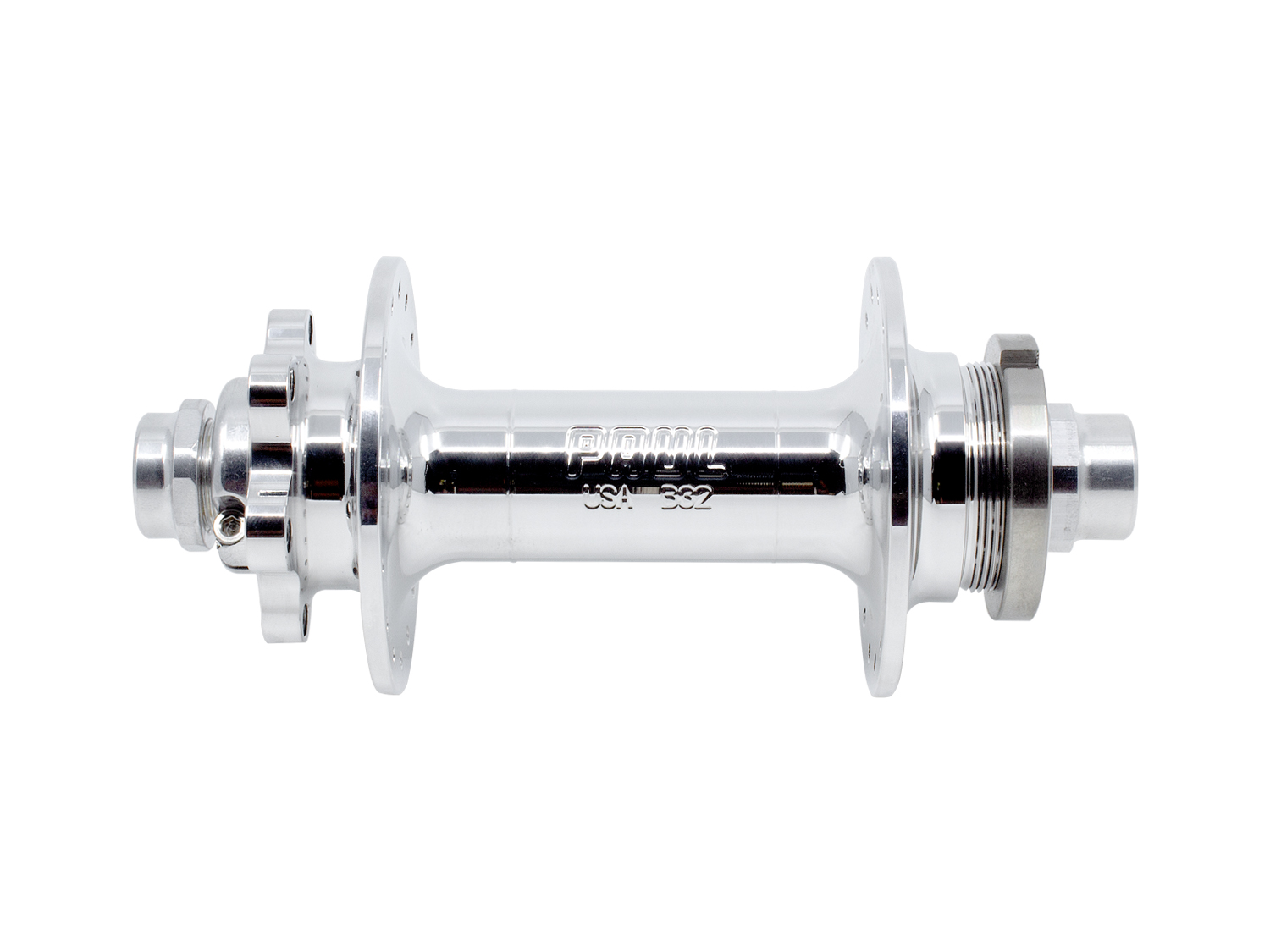

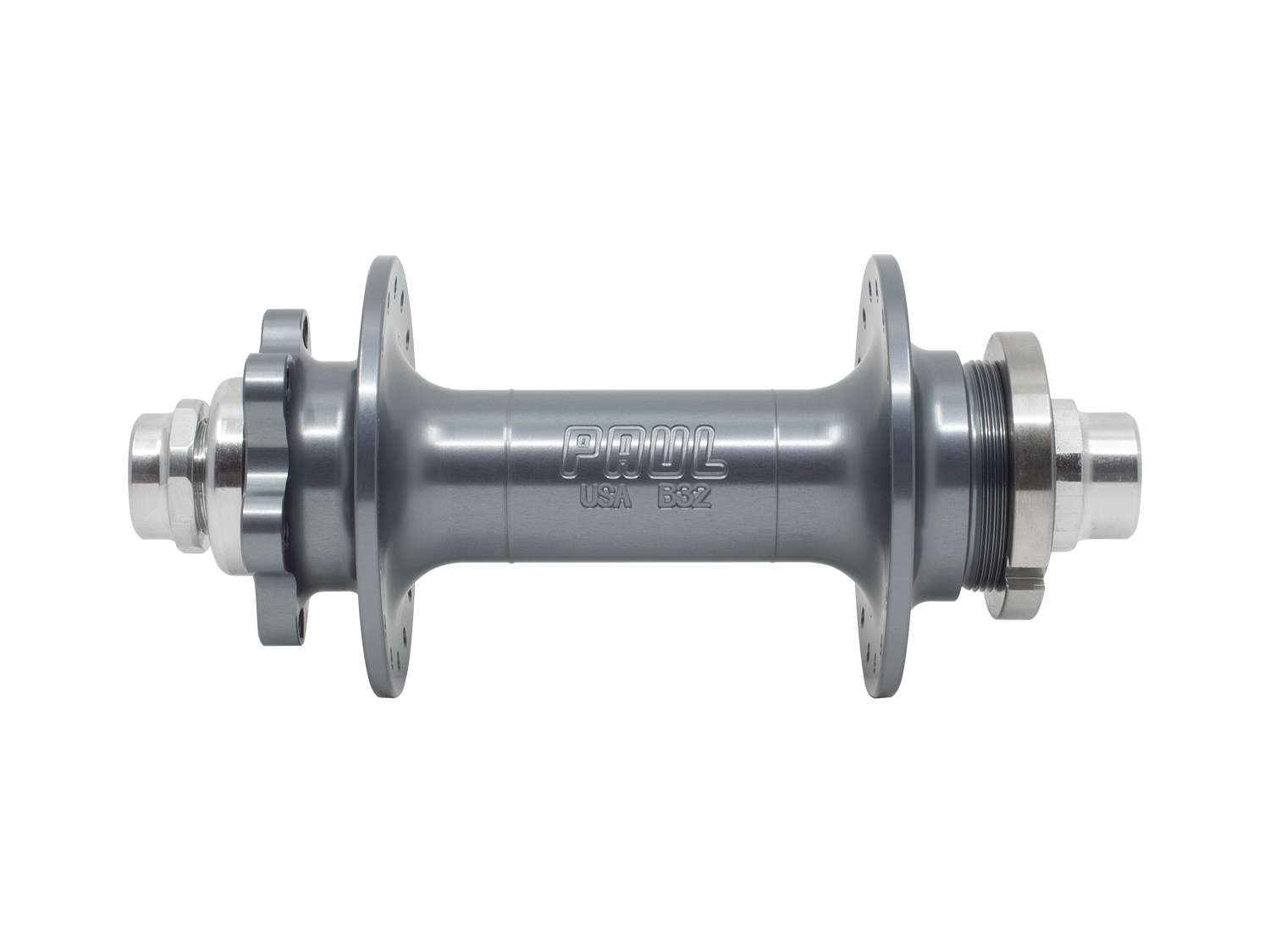

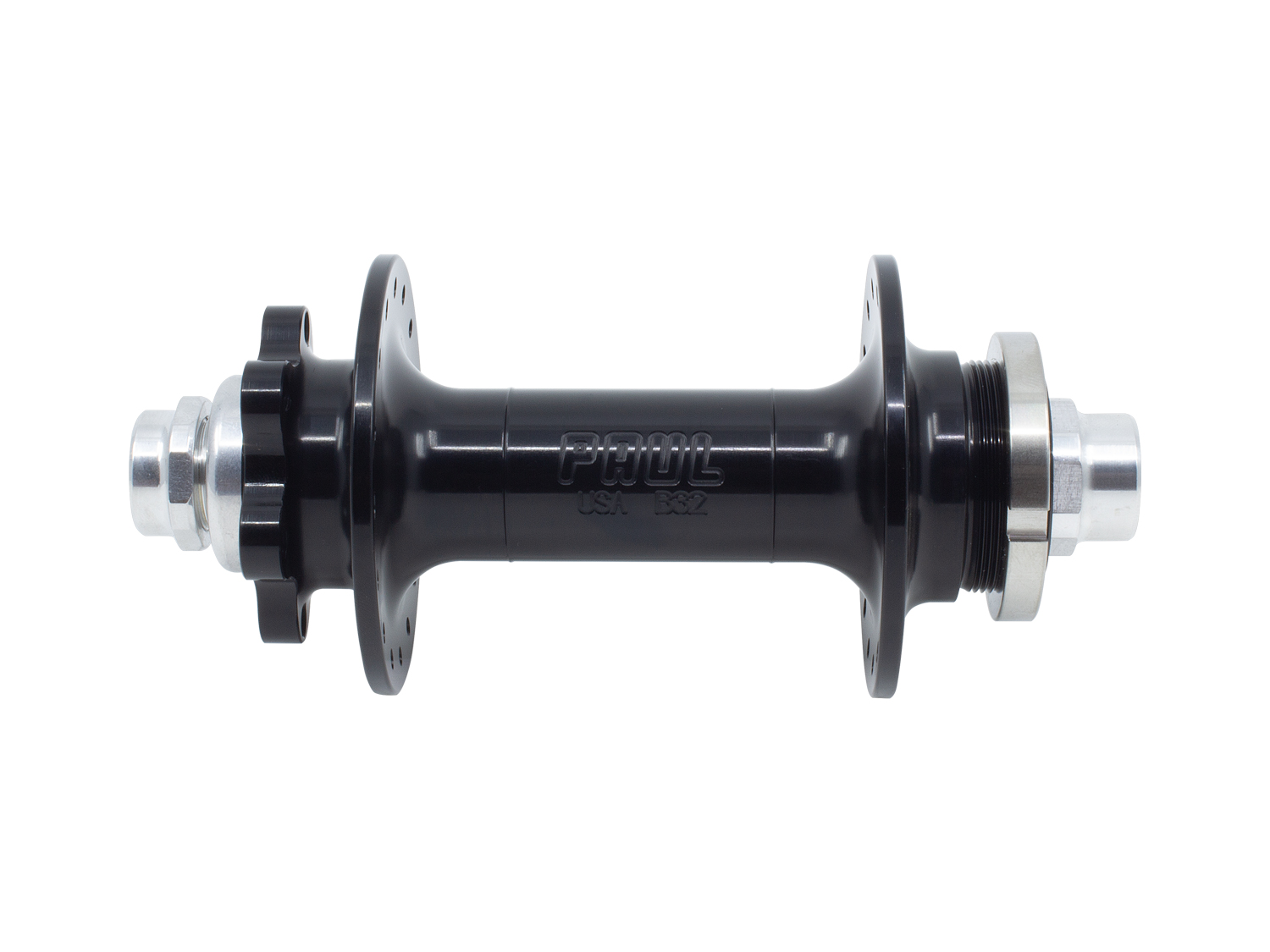

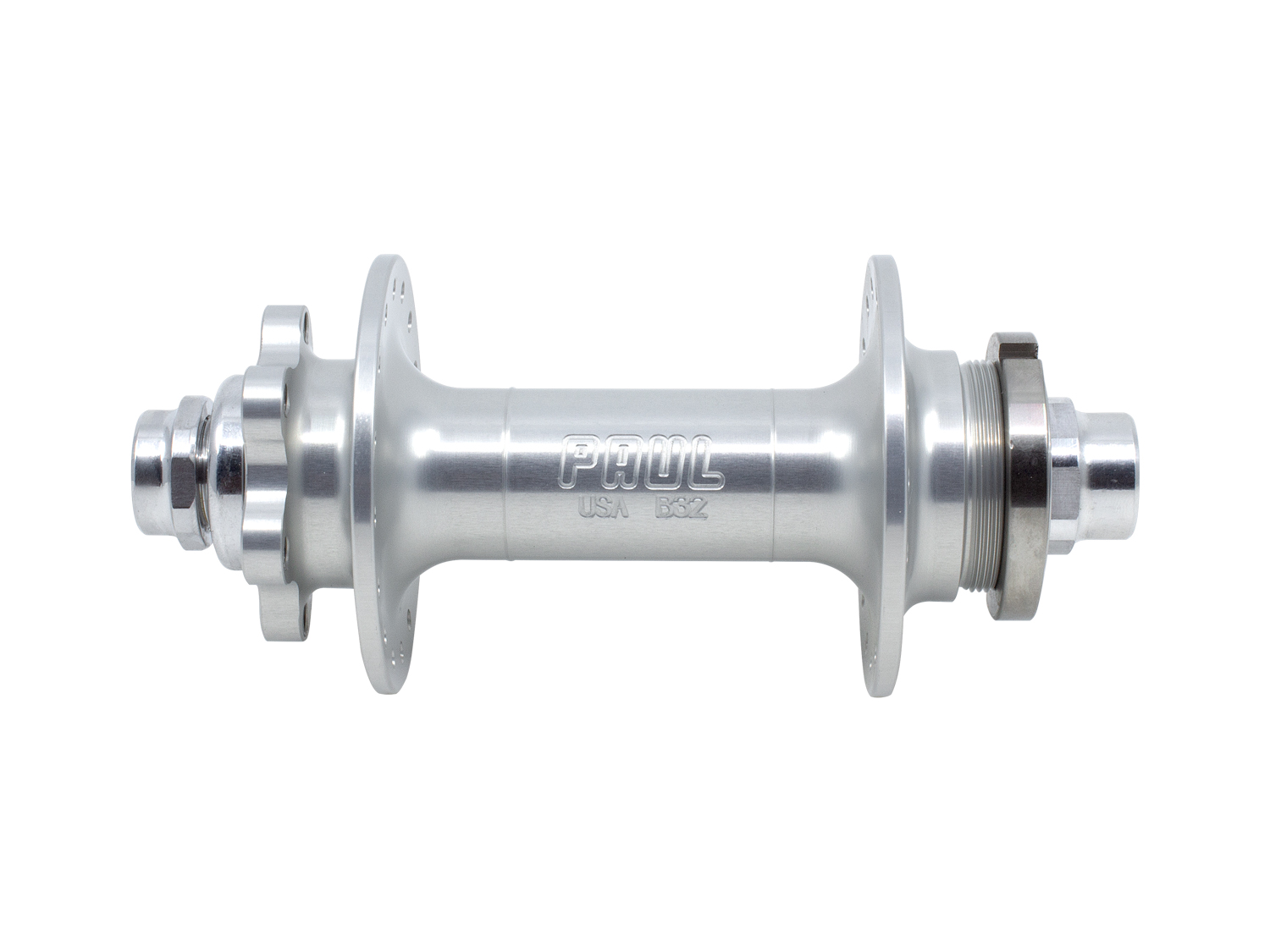

Only a real weirdo would ask us to make a BOOST spaced Fixed Gear hub. But here we are, so if you’re here looking at these, you’re a weirdo! This unicorn enables the fixed-gear conversion of bikes with 148mm BOOST rear spacing. It’s machined with care by us here in Chico, California. It’s absolutely bomb-proof, light, easily adjustable, serviceable, and comes with our own thick stainless steel lockring.
$216.00 – $238.00
Weight242g Including Lockring
FinishAnodized or High Polished
ColorBlack, Silver, or Purple
DimensionsAxle Spacing: 148mm
Flange Diameter: 56m
Center to Disk Flange: 37.0mm
Center to Non-Disk Flange: 37.0mm
Spoke Holes32 only for this hub.
Spoke Hole Diameter2.5mm
Cog ThreadingEnglish 1.37x24tpi
Lockring (Included) ThreadingEnglish 1.29x24tpi
Lockring Torque30 Nm
We machine these hubs from 2-5/8″ round bars of aircraft grade 6061 aluminum. The hub shells are put through four different machining processes before they go to finishing, and the end result is something we’re very proud of. The flanges are canted towards the rim, and the spoke holes are chamfered to reduce stress on the head and elbow of the spoke.
The hub shell is available with dedicated fixed gear and lockring threading on one side, with a 6 bolt disc rotor mount on the other side. Proper left-handed lockring threading keeps fixed gear cogs secure, and our heavy-duty stainless steel lockring is included.
The axle is precision turned in-house from 7075 aluminum, which has a great strength to weight ratio.
We use high-fill sealed bearings, and they can be easily adjusted with our simple adjuster ring.
